| Xprog-m Programmer V5.50 |
| No.: |
KP02 |
| Weight: |
1000
g |
| |
|
| price: |
Please log in |
| |
|
| |
|
|
|
|
| |
|
|
| |
The XPROG-box project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM's, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculators and others).
Notice for xprog-m software version 5.50 Please use our CD software in the package only!!!! If you use other version software (lower or higher) or try to update the software or hardware, the hardware will be damaged, and lose its warranty. Operating system: Only 64-bit Microsoft Windows XP, Only 64-bit Microsoft Windows 7 Language: English only
Introduction:
The XPROG-box project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM's, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculators and others).

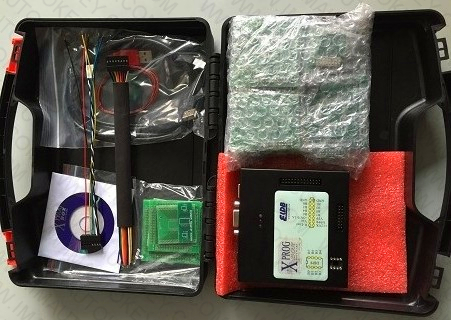

Package list:
xprog-m hardware (Aluminum enclosure) .
Basic software authorizations and programming adapters set, total 19pcs
USB Cable.
USB dongle
CD with XPROG-box software (V5.50)
Authorizations:
Product Code introduction
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
|
| |
|
|
|
|
|
