2022 Newest Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support Read Voltage and Leakage Current

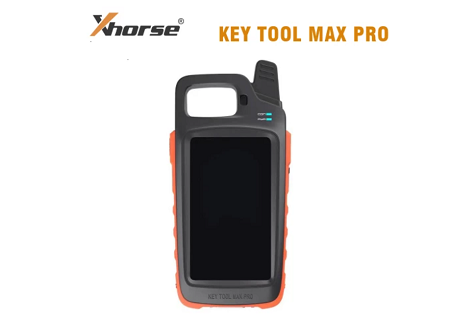

2022 Xhorse VVDI Key Tool Max PRO Remote Maker and Key Programmer

Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.

Hightlights:

• with Built-in OBD module, Combines functions of Key Tool Max and Mini OBD Tool

• Comes with integrated CAN FD for GM vehicles and All in One

• Adds battery voltage measurement, and leakage current measurement

• Supports Toyota H all keys lost with 8A AKL adapter

• Control Xhorse Condor/Dolphin key cutting machines

The brand new Key Tool Max Pro from Xhorse comes with all the features of the existing Key Tool Max but with much, much more!

Designed with locksmiths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing programming directly through the Key Tool Max Pro rather than needing a separate programmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

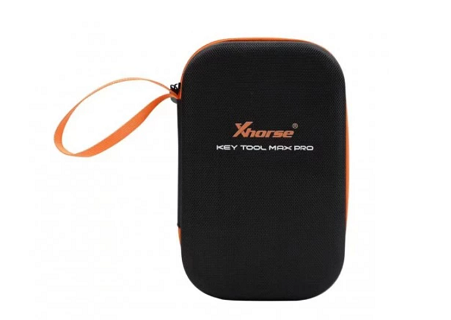

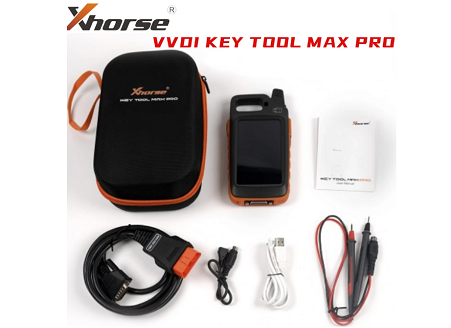

Packing list :

Parameter
Battery: 3375mAh
Standby: >5 Days
Inoput: 1.5A
Light: >400nits
Screen Resolution: 1280*720P
Camera: 800W
WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE

Functions:

• Immobilizer programming

• Service reset

• Generate remote

• Clone remote

• Generate transponder

• Copy transponder

• Generate special function

• Unlock/Renew remote

• Identity/Copy ID card

• Generate/Copy garage remote

• Detect frequency

• Detect remote battery/voltage
